VFD560 textile VFD

Textile VFD is a variable frequency speed controller used in textile equipment to control the motor speed.

Application

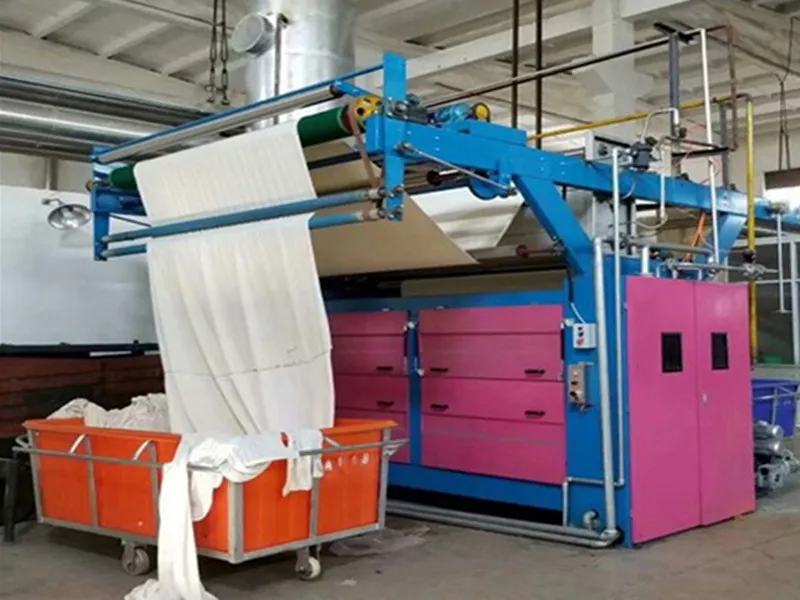

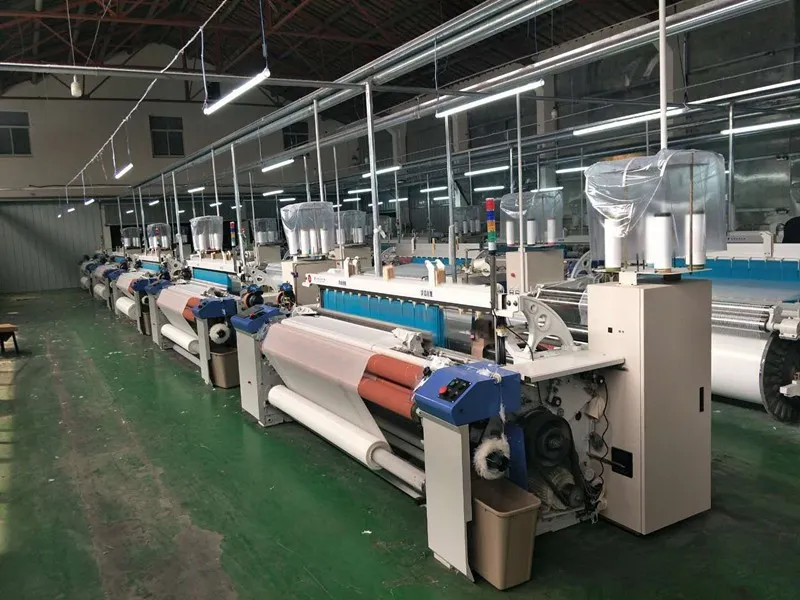

Textile Industry: The XC560 Textile VFD is used to control the motor speed of equipment such as spinning machines, looms, and dyeing machines.

Automated Production Lines: It is used to adjust the operating speed of equipment such as conveying systems and packaging machinery.

Wind Power Generation: It is used to adjust the motor speed and power output of wind turbines.

Petrochemical and Chemical Industries: It is used to control the motor speed of equipment such as mixers, pumps, and compressors.

Mechanical Processing: The XC560 is used to control the motors of precision processing equipment such as CNC machine tools and drilling machines.

Water Treatment: It is used to adjust the operating speed of equipment such as pumps and fans.

Warehousing and Logistics: It is used to adjust the speed of equipment such as conveyor belts and sorting systems.

Product features

Stable Power Output
The XC560 Textile VFD delivers up to 150% of rated torque at low frequencies (e.g., 0.5Hz).

Energy Efficiency
Automatic energy optimization and automatic voltage regulation (AVR) functions adjust the V/F curve and output voltage in real time based on load conditions.

Precise Speed Control
The XC560 offers ±0.5% speed accuracy, making it ideal for textile equipment requiring strict production speed control.

Flexible Adaptability
Supporting up to 15 speed control levels, the XC560 can adjust acceleration and deceleration times and frequency for different operating conditions via the built-in PLC or external control port.

Strong Compatibility
With built-in Modbus and RS485 communication protocols, the XC560 can be integrated with existing factory automation systems.

Product specification

import	Rated voltage and frequency		Three-phase 380 v level: three-phase 380V, 50Hz / 60Hz
	Allowable voltage fluctuation range		Three-phase 380-volt stage: 320~460V
Output	voltage		0~ Input voltage
	frequency		0～600HZ
	overload capacity		150% rated current for 1 min
Control performance	control method		No PG vector control, no PG torque control, open-loop V / F control
	Speed control accuracy		± 0.5% Rated Synchronous Speed (no PG vector control): ± 1% Rated synchronous speed (V / F control):
	Speed range		1:100 (no PG vector control) 1:50 (V / F control)
	starting torque		1.0 Hz: 150% Rated torque (V / F control): 0.5 Hz: 150% rated torque (no PG vector control):
	velocity perturbation		± 0.3% rated synchronous speed (no PG vector control)
	Torque control accuracy		± 10% Rated torque (no PG vector control, no PG torque control)
	Torque response		20 ms (no PG vector control)
	Frequency accuracy		Number setting: the highest frequency X ± 0.01%: simulation setting: the highest frequency ± 0.5%
	frequency resolution	Simulation setting	And 0.1% of the highest frequency
		Digital setting accuracy	0.01Hz
		External pulse	And 0.1% of the highest frequency
	Recurrent ascension		Automatic torque lifting: manual torque increase 0.1~12.0%
	V / F curve (voltage and frequency characteristic)		The rated frequency is set at 5~600 Hz, including constant torque, decreasing torque 1, decreasing torque 2, decreasing torque 3, custom V / F
	Add deceleration curve		Two ways: linear acceleration and deceleration and S curve acceleration and deceleration: 15 kinds of acceleration and deceleration time, time unit (0.01s,0.1s, 1s) optional, the longest 1000 minutes
	braking	dynamic braking	The full range of standard braking units, only between (+) and PB brake resistance, but also external braking unit between (+) and (-).
		DC injection braking	Start and stop actions are optional respectively, with action frequency 0~15Hz, action current 0~100% rated current, and action time 0~30.0s
	crawl		Point moving frequency range: 0Hz~ upper limit frequency: point moving acceleration and deceleration time 0.1~6000.0 seconds can be set
	Multi-section speed operation		Through the built-in PLC or control terminal to achieve multi-segment speed operation, up to 15 segments, each segment corresponding to a separate acceleration and deceleration time, the built-in PLC support power storage
	Automatic energy saving operation		According to the load situation, the V / F curve is automatically optimized to realize the energy-saving operation
	Automatic Voltage Adjustment (AVR)		When the power grid voltage changes, it can automatically keep the output voltage constant
	Automatic flow limit		Automatic limit the current during operation to prevent frequent overcurrent fault trip
	Carrier modulation		The carrier adjust carrier adjusted according to the load characteristics
	The rotational speed tracking starts again		Realize the non-impact smooth start of the rotating motor
Run the function	Run the command given to the channel		Operation keyboard given, control terminal given, communication given, can be switched through a variety of ways
	Run the frequency given the channel		Main auxiliary given, to achieve a main adjustment, a fine-tuning control. Digital given, analog given, pulse given, pulse width given, communication given can be switched at any time in many ways
	Bundle function		The running command channel and the frequency given channel can be arbitrarily bundled, synchronous switching
Input output features	Digital input channel		5 universal digital input channels, the maximum frequency is 1 KHz, of which 1 channel can be used as a pulse input channel, and the maximum input is 20 KHz
	analog input channel		Two analog input channels, AI1 optional 0-20 mA or 0-010 V output, AI2 optional 0-20 mA or-10-10 V input
	Pulse output channel		The pulse square wave signal output of 0.1 ~ 20 KHz can realize the output of physical quantities such as set frequency and output frequency
	analog output channel		Option 0 ~ 20 mA or 0~10V to realize the output of physical quantities such as set frequency and output frequency.
Featured function	Fast flow limit		Limit limit frequency converter flow, more reliable operation
	Single pulse control		Suitable for the need to one key control the frequency converter up, stop, press, and then press stop, and then press again, so repeated. This use is simple and reliable, and it is not easy to misoperate
	Long control		Fixed length control can be achieved
	timing control		Timing control function: set the time range of 0.1Min~6500.0Min
	Virtual terminal		Five sets of virtual input, output I0, which can achieve simple logic control
Operate fingerboard	The keyboard display		Set frequency, output frequency, output voltage, output current and other parameters can be displayed
	Key lock		Lock in some or all of the keys
	defencive function		Short circuit detection of electric motor, input and output phase deficiency protection, over current protection, over voltage protection, Undervoltage protection, overheat protection, overload protection, underload protection, relay suction protection, Terminal protection, power failure protection, etc
Environment	Where to use		Indoor, not directly exposed to sunlight, no dust, corrosive gas, combustible gas, oil mist, water steam, dripping water or salt, etc
	height		Below the 1,000 m.(Above 1000 m, the output current of every 1000 m reduces the rated current)
	ambient temperature		-10℃ ~ + 50℃ (ambient temperature is above 50℃, please reduce or enhance heat dissipation)
	The surrounding humidity		Less than 95% RH, and the anhydrous beads were condensed
	vibrate		Less than 5.9 m / sec ² (0.6g)
	Storage temperature		-40℃~+70℃
Structure	levels of protection		IP20
	cooling-down method		air blast cooling
Way to install			Wall hanging type and cabinet type
