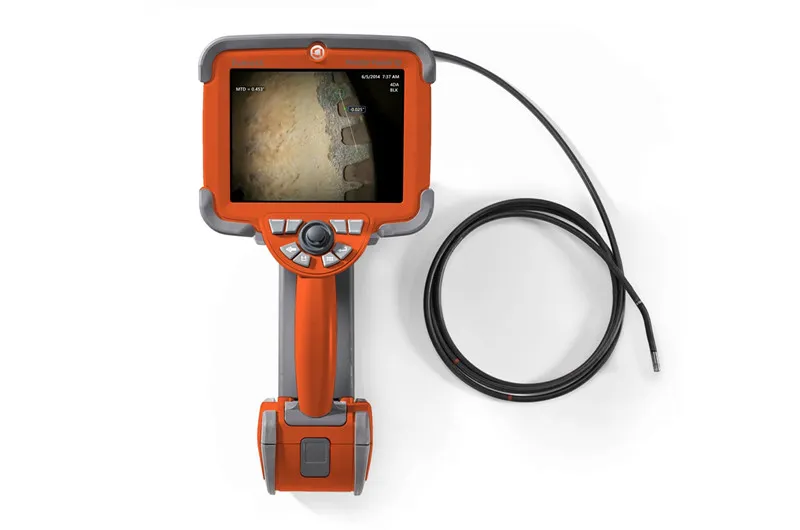

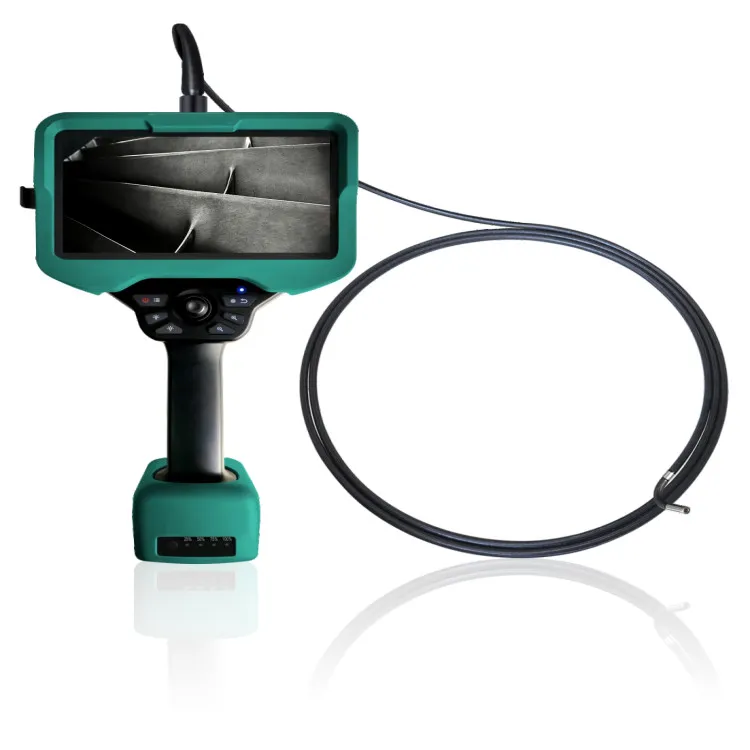

XV5 series electric control industrial videoscope
Industrial Videoscope is a high-definition intelligent detector for internal inspection of equipment. It adopts advanced imaging system and multi-directional bending probe, and is suitable for aviation, automobile, energy, manufacturing and other fields.
application
The product can be widely used in aerospace, automobile manufacturing, precision casting, railway, ship, petrochemical, energy and power, military equipment and other fields.
Product features
High-Definition Imaging
Equipped with a 1/2.8-inch CMOS high-definition sensor with a resolution of 1920×1080.
Omnidirectional Bendability
The probe supports 360° omnidirectional bending with a minimum bend radius of 25mm.
Integrated Design
Integrated display, control, and storage modules, eliminating the need for external devices.
Intelligent Analysis
Built-in AI recognition algorithms automatically identify defects such as cracks, foreign matter, and corrosion.
Specification
Main Unit System
Display Size: 6" / 7" IPS full-fit HD touchscreen
Output Port: HDMI video interface
Overall Dimensions: 326 × 185 × 118 mm / 350 × 197 × 126 mm
Weight (including battery): 2.0 kg / 2.1 kg
Battery Capacity: 6000 mAh, 7.4 V (display) / 5000 mAh, 7.4 V (handle)
Working Time: ≥ 8 hours
Tube System
Probe Diameter: φ2 / φ2.8 / φ3.9 / φ4.8 / φ6 / φ8 mm
Probe Articulation: Electrically controlled, 360° in all directions
Compatibility: Replaceable display and insertion tube
Protection Rating: IP67 dustproof and waterproof
3D Measurement Accuracy/Error: 0.01 mm, ≤ 5%
Operating Environment
Operating Temperature Range: -20°C to +60°C
Probe Working Temperature: -25°C to +100°C
Storage Temperature: -40°C to +60°C
Relative Humidity: ≤ 95%, without condensation
