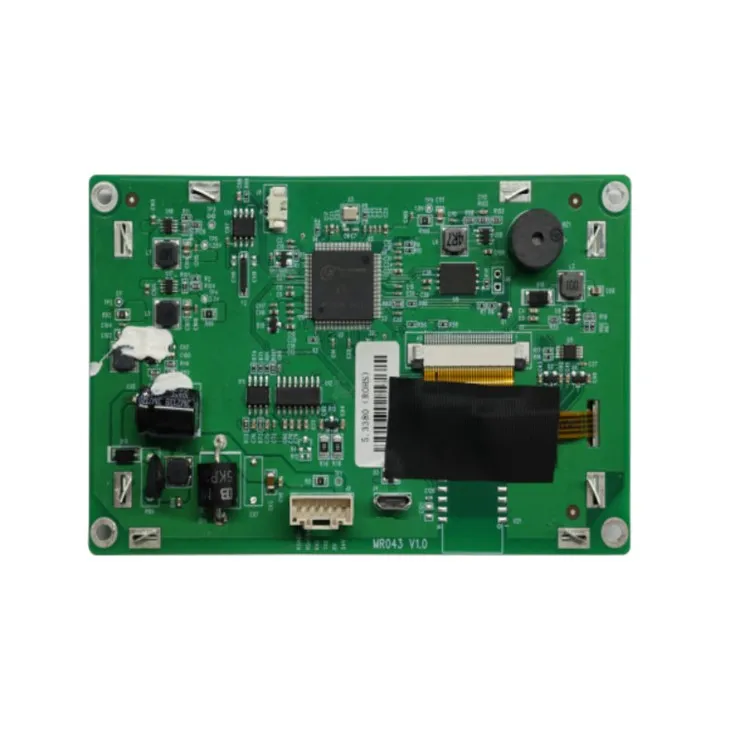

XH043 embedded touch screen
VFD043 is a cost-effective industrial embedded hmi with a 4.3-inch HD display and a 256K color display, providing users with an excellent visual experience. Its built-in 792 MHz processor and 64MB of memory to ensure smooth and efficient configuration operation. At the same time, it supports users to design personalized facial masks according to their needs, further improving the grade and professional sense of the equipment, so that it has more advantages in customized scenes.
Product features
- Powerful functions, simple and easy to use.
- It adopts rear installation and fixing method, which can perfectly fit the surface of the equipment and integrate with the equipment.
Product specification
|
Model |
XH043 |
|
Performance requirement |
|
|
Displays the size |
4.3"TFT |
|
Display area |
95.04(W)x53.86(H) |
|
Resolution ratio |
480 * 272 pixels |
|
Show color |
256K color |
|
Displays the perspective |
70 / 70 / 50 / 70 (left / right / top / bottom) |
|
Contrast ratio |
500:1 |
|
Backlit type |
LED |
|
Luminance |
450cd/m² |
|
Backlight life |
For 50,000 hours |
|
Touch panel |
4-wire precision resistance network (surface hardness 4H) |
|
Processor |
ARM RISC32Bit792MHz |
|
Memorizer |
128MB NAND of flash memory + 64MB DDR3 of memory |
|
RTC |
Built-in real-time clock |
|
Scalable memory |
not avaiable |
|
Print the port |
gorge line |
|
Program download |
USB Slave (Micro USB) / serial port |
|
Ethernet |
nonsupport |
|
Communication port |
COM0:RS485/COM2:RS232 |
|
Electrical specifications |
|
|
Enter the power supply |
DC10.8V～DC28V |
|
Power dissipation |
2W@DC24v |
|
Allow power loss |
<3ms |
|
Insulation resistance |
Over 50MO@500V DC |
|
High-voltage insulation test |
And 500 VAC for 1 min |
|
Structural specifications |
|
|
PCB flame plating |
unavaiable |
|
Sheathing material |
No shell |
|
Outline dimension |
122×75x15.1mm |
|
Install the opening size |
115×66 mm |
|
Weight |
About 0.12kg |
|
Environmental specification |
|
|
Operating ambient temperature |
0～50C |
|
Humidity of working environment |
10 ~ 90% RH (no condensation) |
|
Storage environment temperature |
-20～60℃ |
|
Storage environment humidity |
10 ~ 90% RH (no condensation) |
|
Sine vibration test |
10 to 500 Hz, 30 m/s², triaxis / 1 hour |
|
Cooling-down method |
natural air cooling |
