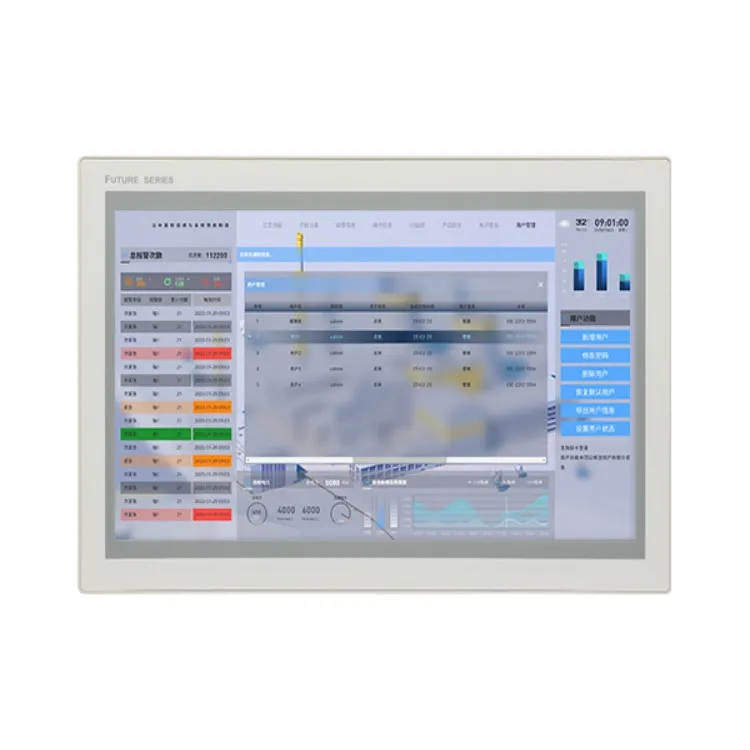

XH2156E2 lithium battery touch screen
A Lithium Battery Touch Screen is a device that integrates lithium battery power supply and touch screen display. It is mainly used in portable devices and smart terminals, providing independent power supply and touch interaction functions.
Product features
Ultra-HD Large Screen
A large 15.6-inch screen with 2K resolution and 16 million true colors clearly displays device parameters and product details, preventing minor issues from being missed.
Powerful Quad-Core Processor
A quad-core ARM 1.8GHz processor, 1GB of RAM, and 8GB of flash memory rapidly processes complex commands and massive amounts of data.
Dual Network and Dual Serial Ports
Dual network ports (LAN0 supports 10/100/1000Mbps, LAN1 supports 10/100Mbps) and dual serial ports (COM0 supports RS232/RS485/RS422, COM2 supports RS232) allow for seamless connectivity with a variety of devices.
Safe and Stable
The metal casing with triple-conformal coating and isolated power supply design resists dust, water, corrosion, and electromagnetic interference.
Product specification
|
Product specification |
|
|
Items |
XH2156E2 |
|
Displays the size |
15.6"TFT |
|
Display area |
344.16(W)x193.59(H) |
|
Resolution ratio |
1920 * 1080 pixels |
|
Show color |
16.2M |
|
Displays the perspective |
89 / 89 / 89 / 89 (left / right / upper / bottom) |
|
Contrast ratio |
1000:1 |
|
Backlit type |
LED |
|
Luminance |
300cd/m2 |
|
Backlight life |
For> 30,000 hours |
|
Touch panel |
4-wire precision resistance network (surface hardness 3H) |
|
Processor |
Quad-core ARM1.8GHz |
|
Memorizer |
8GB NAND of flash memory + 1GB RAM of memory |
|
RTC |
Built-in real-time clock + 512 KB formulation |
|
Scalable memory |
1 USB Host |
|
Print the port |
USB Host / serial port |
|
Ethernet |
LAN0:10/100/1000 Mbps LAN1:10/100 Mbps |
|
Program download |
Network port / USB Slave / U disk |
|
Communication port |
COM0:RS232/RS485/RS422;COM2:RS232; |
|
Electrical specifications |
|
|
Enter the power supply |
DC18V~DC28V, built-in isolation power supply |
|
Power dissipation |
15W@DC24V |
|
Allow power loss |
<3ms |
|
Insulation resistance |
More than 50 MQ @ 500 VDC |
|
High-voltage insulation test |
500 VAC for 1 min |
|
Structural specifications |
|
|
PCB flame plating |
available |
|
Sheathing material |
metal |
|
Outline dimension |
395x259x25.5mm |
|
Install the opening size |
381.5x245.5mm |
|
Way to install |
Cp installation, VESA mount (VESA 100 * 100 mm) |
|
Weight |
2.5KG |
|
Environmental specification |
|
|
Operating ambient temperature |
0～50℃ |
|
Humidity of working environment |
Condensation Not Applicable |
|
Storage environment temperature |
-20～60℃ |
|
Storage environment humidity |
Condensation Not Applicable |
|
Seismic degree |
10 to 500 Hz, 30 m/s², 3-axis / 1 hour |
|
Cooling-down method |
natural air cooling |
Applications
Portable Devices
Lithium Battery Touch Screens are used in portable devices such as mobile terminals and tablets, providing independent power and touch control, ensuring normal operation even without an external power source.
Smart Terminals
In smart terminals such as smartphones and smartwatches, lithium batteries provide long-term power, while touch screens enable user interaction and enhance user convenience.
Industrial Equipment
In industrial control equipment, Lithium Battery Touch Screens provide stable power and enable real-time operation and monitoring through the touch screen, optimizing work efficiency.
Self-Service Terminals
In vending machines, ATMs, and other devices, Lithium Battery Touch Screens provide power and touch control, ensuring independent operation and facilitating user self-service.
