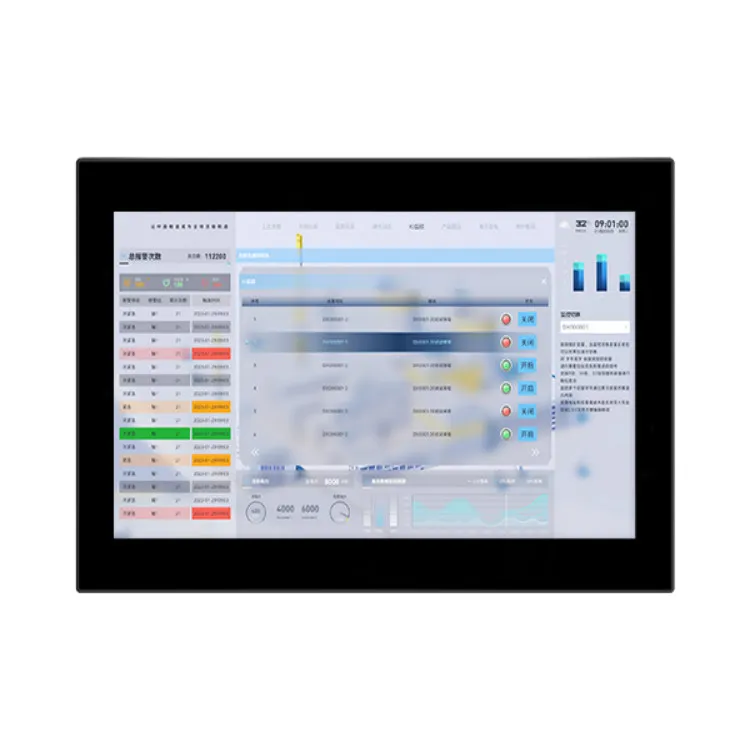

XH2156E2 Photovoltaic Touch Screen
Solar HMI is an industrial device that combines solar power supply and touch display technology, and is mainly used in environments without stable power supply.
Product features
Stable Communication Capabilities
The XH2156E2 features dual network and serial ports, making it ideal for PV monitoring systems that require multi-device interconnection.
Powerful Processing Performance
With a built-in quad-core ARM 1.8GHz processor, 1GB of RAM, and 8GB of flash memory, the XH2156E2 efficiently handles complex industrial data.
High Durability
With a metal housing, triple-conformal coating, and power isolation, the XH2156E2 offers long-term, stable operation in harsh outdoor PV environments.
Long Life and Low Maintenance
Equipped with a 15.6-inch, high-definition LED backlit display, it boasts a brightness of up to 300cd/m² and a backlight lifespan exceeding 30,000 hours, reducing maintenance requirements due to display failures.
Product specification
|
Items |
XH2156E2 |
|
Displays the size |
15.6"TFT |
|
Display area |
344.16(W)x193.59(H) |
|
Resolution ratio |
1920 * 1080 pixels |
|
Show color |
16.2M |
|
Displays the perspective |
89 / 89 / 89 / 89 (left / right / upper / bottom) |
|
Contrast ratio |
1000:1 |
|
Backlit type |
LED |
|
Luminance |
300cd/m2 |
|
Backlight life |
For> 30,000 hours |
|
Touch panel |
Intensive glass capacitive touch panel |
|
Processor |
Quad-coreARM1.8GHz |
|
Memorizer |
8GB NAND of flash memory + 1GB RAM of memory |
|
RTC |
Built-in real-time clock + 512 KB formulation |
|
Scalable memory |
1USB Host |
|
Print the port |
USB Host / serial port |
|
Ethernet |
LAN0:10/100/1000 Mbps LAN1:10/100 Mbps |
|
Program download |
Network port / USB Slave / U disk |
|
Communication port |
COM0:RS232/RS485/RS422;COM2:RS232; |
|
Electrical specifications |
|
|
Enter the power supply |
DC18V~DC28V, built-in isolation power supply |
|
Power dissipation |
15W@DC24V |
|
Allow power loss |
<3ms |
|
Insulation resistance |
More than 50 MQ @ 500 VDC |
|
High-voltage insulation test |
500 VAC for 1 min |
|
Structural specifications |
|
|
PCB flame plating |
avaiable |
|
Sheathing material |
metal |
|
Outline dimension |
395x259x25.5mm |
|
Install the opening size |
381.5X245.5mm |
|
Way to install |
Cp installation, VESA mount (VESA 100 * 100 mm) |
|
Weight |
2.5KG |
|
Environmental specification |
|
|
Operating ambient temperature |
0～50℃ |
|
Humidity of working environment |
10 ~ 90% RH (no condensation) |
|
Storage environment temperature |
-20～60℃ |
|
Storage environment humidity |
10 ~ 90% RH (no condensation) |
|
Seismic degree |
10 to 500 Hz, 30 m/s², 3axis / 1 hour |
|
Cooling-down method |
natural air cooling |
Applications
Photovoltaic Power Plant Monitoring
The XH2156E2 can be used in photovoltaic power plant monitoring systems. Its dual network and serial ports provide stable data transmission, supporting remote monitoring and real-time access to power plant operating status.
Industrial Automation Control
In industrial automation systems, the XH2156E2 serves as a human-machine interface, displaying real-time data and providing operational control.
Outdoor Equipment Monitoring
The XH2156E2 is suitable for outdoor environments such as photovoltaic and wind power plants. Its triple-proof design ensures stable operation in harsh environments such as high temperature and high humidity.
