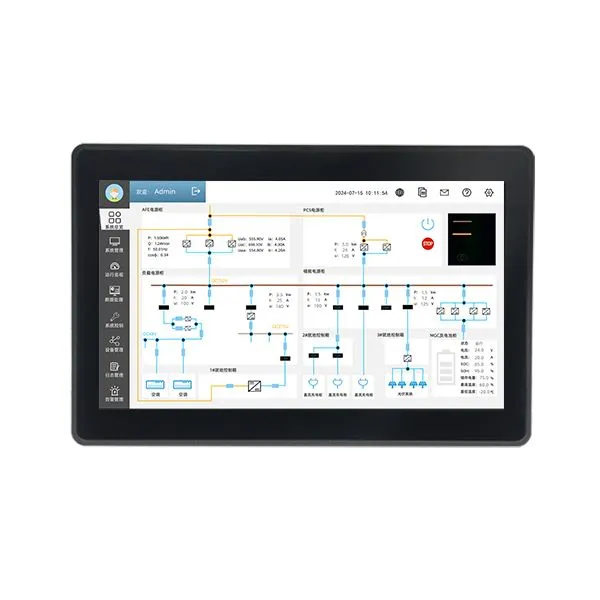

XH100E2-WIFI-PR01 Wide Temperature Inverter
Wide Temperature HMI is a touch screen that can operate stably in an extremely wide temperature range and is widely used in industrial and outdoor environments.
Product features
Ultra-clear display
The product utilizes TP+LCD full-lamination technology, paired with a 10.1-inch capacitive touchscreen and 16.77 million true-color display, delivering crisp, lifelike images and precise information.
Dual-network Wi-Fi
The product features dual network ports (LAN0 and LAN1, both supporting 10/100Mbps) and Wi-Fi, enabling remote debugging.
Safe and durable
The all-metal housing design, combined with a conformal coating on the motherboard, provides a rugged protection against condensation and provides strong resistance to electromagnetic interference.
Adaptable to a wide range of environments
The operating temperature range is -20°C to 70°C, with an operating humidity of 10% to 90% RH (non-condensing). The storage temperature is -30°C to 80°C, with a storage humidity of 10% to 90% RH (non-condensing). The device operates stably in a variety of extreme temperatures and humidity environments.
Product specification
|
Performance specifications |
|
|
Display size |
10.1"TFT |
|
Display area |
222.72(W)*125.28(H) |
|
Resolution |
1024*600 pixel |
|
Display color |
16.7M |
|
Display viewing angle |
85/85/85/85(left/right/up/down) |
|
Contrast ratio |
800:1 |
|
Backlight |
LED |
|
Brightness |
250cd/m2 |
|
Backlight life |
>30000 hours |
|
Touch panel |
4line precision resistance network (surface hardness3H) |
|
CPU |
ARM RISC.32Bit 800MHz |
|
Memory |
256MB NAND Flash Memory+256 MB DDR3 RAM |
|
RTC |
Built-in(512KB) |
|
Extensible memory |
1USB Host |
|
Print port Ethernet |
USB Host/serial port LAN0:10/100 MbpsLAN1:10/100 Mbps |
|
Program download |
Ethernet port/USB Slave/U disk |
|
Com port |
COM0:RS232/RS485/RS422; COM1:RS485/RS422/CAN;COM2:RS232 |
|
Electricalspecifications |
|
|
Input power supply |
DC18V～DC28V,built-in isolated power supply |
|
Rated power |
15W@24VDC |
|
Allowable lossof power |
<3ms |
|
Insulation resistance |
50MΩ@500VDC |
|
Pressure resisitance test |
500 VAC1minute |
|
Structure specifications |
|
|
PCB |
Built-in |
|
Shell material |
Metal |
|
Overall dimension(mm) |
166*254*32.6mm |
|
Cut-out dimension(mm) |
192*138mm |
|
Installation mode |
Panel installation,Bracket installation |
|
Weight(kg) |
1.65KG |
|
Environmental specifications |
|
|
Working temperature |
-20～70℃ |
|
Working Humidity |
10～90%RH(Non-condensing) |
|
Storage temperature |
-30～80℃ |
|
Storage humidity |
10～90%RH(Non-condensing) |
|
Seismic resistance |
10～500Hz,30m/s²,X,Y,Z direction/hour |
|
Cooling mode |
Natural air cooling |
Applications
Industrial Automation
Wide Temperature HMIs are used in industrial automation equipment to ensure stable operation and display in extreme temperatures.
Outdoor Self-Service Terminals
Wide Temperature HMIs are used in outdoor equipment such as vending machines and ATMs to ensure stable operation in harsh environments.
Traffic Management
Wide Temperature HMIs are used in traffic signal control and road monitoring equipment to improve traffic management efficiency and safety.
