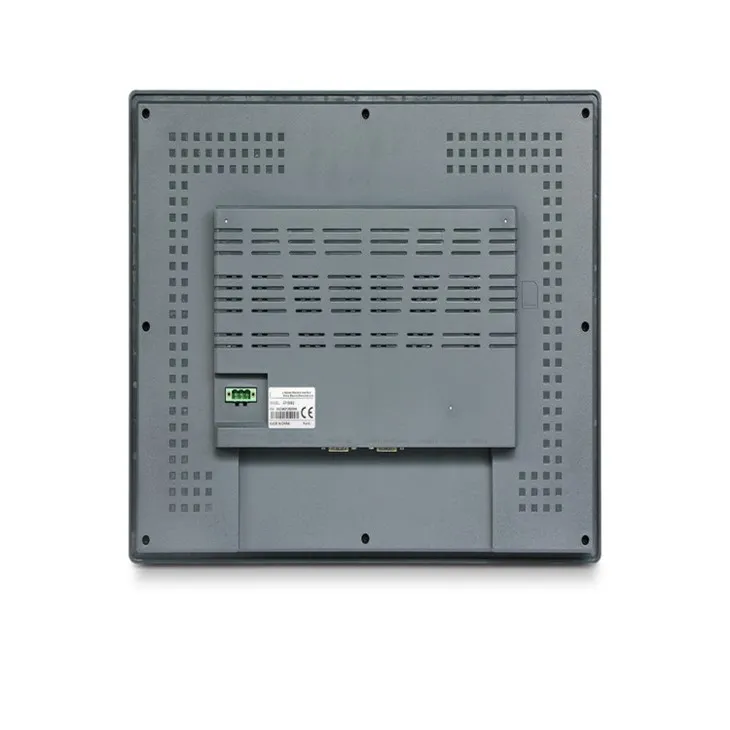

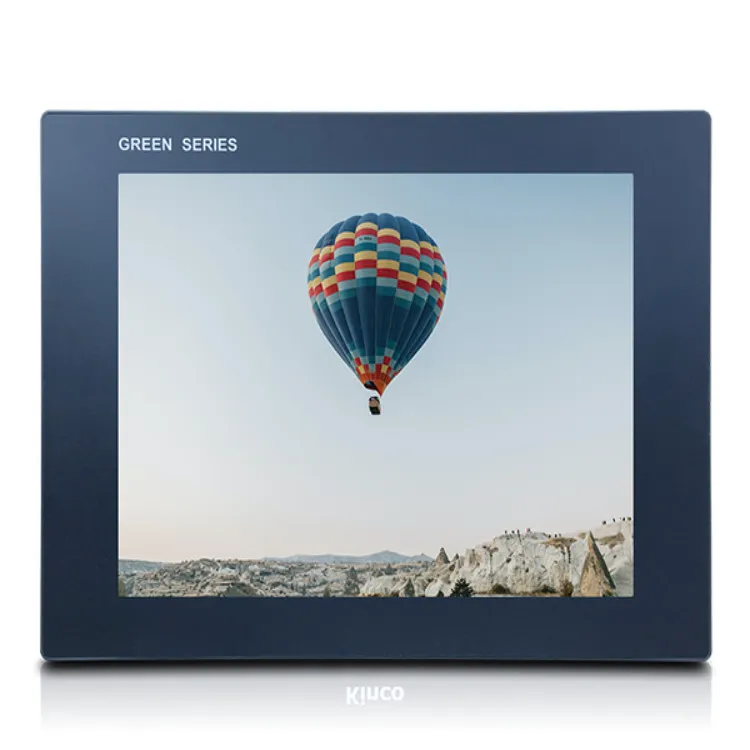

XH150E2 IoT HMI
The Internet of Things Touch Screen is a display screen that integrates touch operation and Internet of Things functions. It is used for remote control and data interaction of smart devices and is widely used in smart homes, industrial automation and other fields.
Product features
Seamless Device Integration
Equipped with dual Ethernet ports and three serial ports, COM0 and COM1 both support RS485 protocol, making it compatible with a wide range of industrial equipment.
Smooth Operation
256MB of flash memory and 256MB of RAM ensure fast response and smooth operation even with complex tasks.
Isolated and Anti-Interference
A built-in isolated power supply shields against external electromagnetic interference, preventing data errors and device failures.
Precision Touch Panel
A 4-wire precision resistive network touch panel with a surface hardness of 4H meets the demands of complex industrial operations.
High-Speed Processor
Equipped with an ARM RISC 32-bit 800MHz processor, it can quickly process large amounts of data and complex commands in industrial scenarios.
Product specification
|
Performance requirement |
XH150E2 |
|
Displays the size |
15"TFT |
|
Display area |
304.13(W)x228.10(H) |
|
Resolution ratio |
1,024 * 768 pixels |
|
Show color |
65,536 in color |
|
Displays the perspective |
80 / 80 / 80 / 80 (left / right / top / bottom) |
|
Contrast ratio |
800:1 |
|
Backlit type |
LED |
|
Luminance |
420cd/m |
|
Backlight life |
For 50,000 hours |
|
Touch panel |
4-wire precision resistance network (surface hardness 4H) |
|
Processor |
ARM RISC32Bit 800MHz |
|
Memorizer |
256MB NAND of flash memory + 256MB DDR3 of memory |
|
RTC |
Built-in real-time clock |
|
Scalable memory |
1USB Host |
|
Print the port |
USB Host / serial port |
|
Program to download Ethernet |
USB Slave (Micro USB) VU disk / network port 2 * 10 / 100 MHz adaptive |
|
Communication port |
COM0:RS232/RS485/RS422 COM1:RS485/RS422;COM2:RS232 |
|
Electrical specification for the input power supply |
DC10.8V~DC28V, built-in isolation power supply |
|
Power dissipation |
16W |
|
Allow power loss |
<3ms |
|
Insulation resistance |
Over 50MO@500V DC |
|
High-voltage insulation test |
And 500 VAC for 1 min |
|
Structural specifications |
|
|
PCB flame plating |
have |
|
Sheathing material |
engineering plastic |
|
Outline dimension |
398mm*298mm*47mm |
|
Install the opening size |
383mm*283mm |
|
Weight environment specifications |
3Kg |
|
Operating ambient temperature |
-10~55℃ |
|
Humidity of working environment |
10 ~ 90% RH (no condensation) |
|
Storage environment temperature |
-20～60℃ |
|
Storage environment humidity |
10 ~ 90% RH (no condensation) |
|
Sine vibration test cooling-down method |
10 to 500 Hz, 30 m/s², 3-axis / 1 hour natural air cooling |
Applications
Industrial Automation Production Lines
In production lines such as automotive manufacturing and electronics assembly, it monitors equipment status, production data, and process parameters in real time, helping operators quickly identify anomalies and make adjustments.
Energy Management
In energy applications such as power and chemical production, it connects metering instruments and control devices to collect and display energy data in real time, assisting managers in analysis and scheduling.
Smart Manufacturing
In smart manufacturing environments such as 3C manufacturing and aerospace, it serves as a collaborative interface for intelligent devices, exchanging information in real time for precise collaboration.
Environmental Monitoring
In environmental protection applications such as urban monitoring stations and industrial parks, it connects monitoring equipment and displays environmental parameters in real time.
Logistics and Warehousing
In logistics and warehousing operations, such as large e-commerce warehouses and manufacturing raw material depots, it operates and manages automated equipment, enabling remote, precise control, and real-time monitoring.
