Frameless Torque Motor

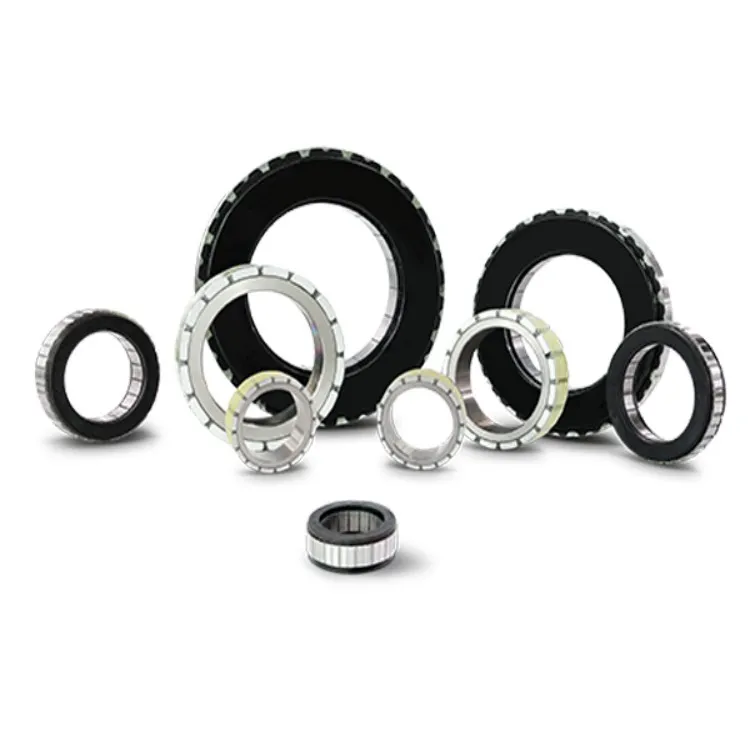

The frameless torque motor is a high-performance product designed for collaborative robots and high-precision equipment. Its rated torque range is 0.45Nm-3.5Nm, and its performance is better than similar products, which can meet diverse industrial needs. The XC frameless torque motor adopts a multi-slot pole design. Compared with traditional 8-pole or 10-pole servo motors, it has smaller tooth positioning torque and smoother operation. This Frameless motor supports high-resolution absolute encoders and Hall feedback functions, and can be customized according to user needs, providing a variety of solutions such as no shell or organic shell. In addition, the motor size is in line with international mainstream products, which can achieve seamless replacement. At the same time, built-in temperature sensor protection and stator and rotor laser marking traceability functions provide guarantees for product reliability and traceability.

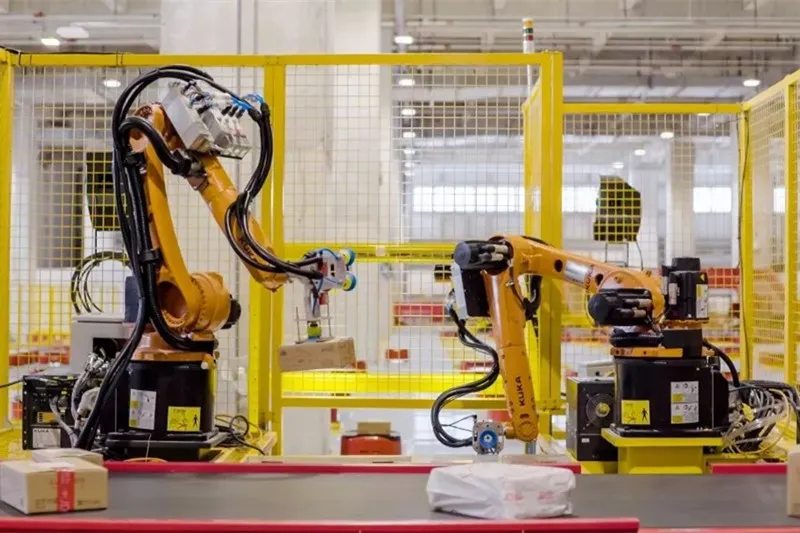

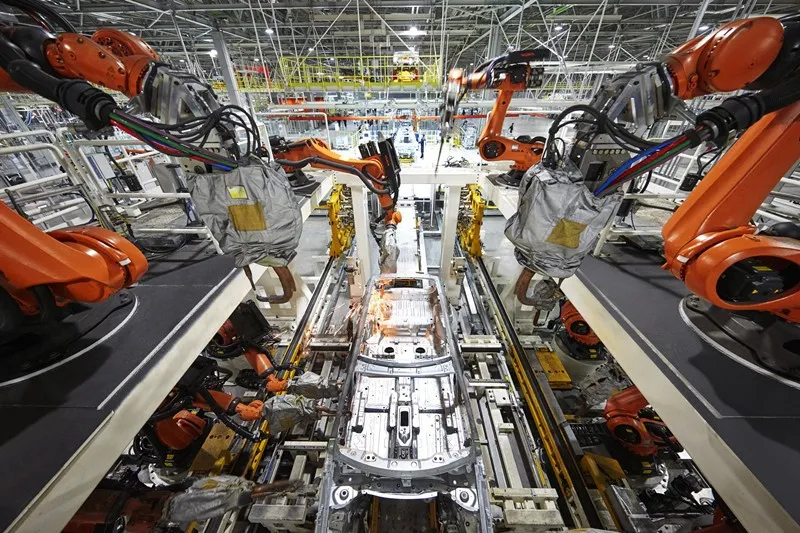

application
Product features
- Temperature sensor protection
- Laser marking of stator and rotor ensures traceability
- Customized solutions are available; solutions without or with a housing can be provided
Product specification
|
Model |
XS C052XX |
XSC057XX |
XSC060XX |
XSC076XX |
XSC077XX |
XSC085XX |
XSC091XX |
XSC104XX |
XSC127XX |
XSC132XX |
|||||||
|
Parameter |
13 |
07 |
14 |
13 |
21 |
12 |
28 |
12 |
30 |
18 |
14 |
30 |
14 |
29 |
18 |
30 |
24 |
|
Power rating Pn (W) |
159 |
100 |
200 |
146 |
258 |
293 |
635 |
314 |
750 |
565 |
630 |
1257 |
380 |
1050 |
904 |
1600 |
1180 |
|
Rated speed Nn (rpm) |
3790 |
3000 |
3000 |
3100 |
3790 |
3300 |
3790 |
3000 |
3000 |
3000 |
3000 |
3000 |
2420 |
2500 |
2400 |
2400 |
3220 |
|
Mechanical time constant tm(ms) |
1.127 |
1.83 |
1.47 |
0.9 |
1.36 |
2.4 |
1.3 |
1.45 |
1.25 |
1.38 |
1.39 |
0.93 |
1.6 |
1.09 |
1.46 |
1.14 |
0.801 |
|
Torque constant Kt (Nm / A) |
0.1014 |
0.132 |
0.132 |
0.117 |
1 |
0.14 |
0.114 |
0.132 |
0.129 |
0.099 |
0.13 |
0.154 |
0.16 |
0.196 |
0.161 |
0.2 |
0.132 |
|
Static torque Ts (N.m) |
0.44 |
0.36 |
0.72 |
0.55 |
0.81 |
1.1 |
1.76 |
1.1 |
2.63 |
2 |
2.2 |
4.4 |
2.2 |
4.4 |
4 |
7 |
3.85 |
